TECHNICAL CERAMICS USED FOR THE PRODUCTION OF REFRACTORY PRODUCTS INCLUDING LINING AND FITTINGS FOR FURNACE EQUIPMENT

Technical Ceramics Used For The Production Of Refractory Products

Including Lining And Fittings For Furnace Equipment

Technical ceramics due to its exceptional properties is widely used for the production of refractory products, including lining and fittings of various shapes for furnace equipment:

corrosion resistance;
resistance to heat shock;
stability of shape and strength preservation at the maximum operating temperature;
low weight;
high reliability and economy in operation.

Basic properties of the material

Propertioes	Brand of material
	SCR-Si1	SCR-Si2-HP	SCR-SSCR-S
Composition	SiC+Si	SiC+Si+C	SiC
Density, g/sm3	3,05-3,07	3,00-3,05	3,10-3,15
Isolated porosity, %	0	0	2
Hardness (at SiC), GPa	25-30	25-30	25-30
Flexural strength, MPa	320-350	270-300	380-410
Compressive strength, MPa	3300-3500	2800-3100	3000-3500
Thermal conductivity at 20-100°С, W/mK	110-120	100-130	100-110
Coefficient of linear thermal expansion at 20-1000°С, 10-6 К-1	3,4-4,9	3,5-5,0	3,0-4,6
Maximum operating temperature
Oxidative environment	1350	1350	1400
A reducing or inert environment	1350	1350	1800

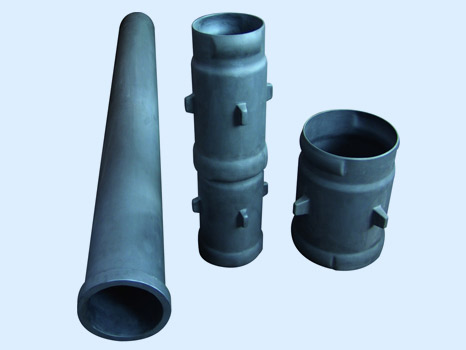

Main products for furnace equipment are:

lining of various shapes;
beams, profiles, guides, heater holders, insulating sleeves;
transportation systems, rollers;
burners;
cooling tubes;
beads, tubes, thermocouple covers.
